The output of factory fitted stereo is tuned to match the factory fitted speakers, therefore even when the speakers are replaced, the sound from the higher quality speakers will still be limited. Pioneer sound processor can cancel the factory audio tuning and create an altogether new sound stage that’s best suitable to the new speakers and car interior.

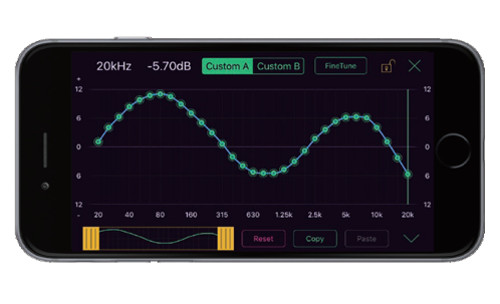

Controls of the processor can be done through Pioneer’s app called Sound Tune. The app is quiet easy to understand and user. For the factory fitted units that donot support music playback from smartphone, the processor can play music too with USB connection. The app is available for both Android and iPhone
This universal sound processor incorporates Pioneer's full-custom high-performance 48-bit dual-core DSP for high-quality sound reproduction. An internal clock and pattern are optimally tuned. Sound degradation from jitter noise is thoroughly eliminated.
Pioneer sound processor offers an easy plug & play connection. The specially developed wire harness connects the factory fitted system with the processor without any hassles. This Wire harness derives Power and audio signal for the processor. The Audio signal can then be tuned as per the user’s preference with an interactive smartphone app.
The extremely compact size of the processor makes the installation easy and neat. The processor can fit in the glove box, under the front passenger seat or behind the factory fitted stereo if there is a space.
Download the Sound Tune App in your smartphone and then connect the phone with processor to do the settings.
For using Source Callibration feature, a test signal is required. Please download it from this link. Test signal is available in two formats (mp3 & wav)
There are specific connection patterns that can be used for powering different speakers and subwoofers.
|Pioneer Sound Tune App||Yes|
|Accessories||IR remote control, 1pc.|
|Maximum output power||4 x 50W
2 x 50W (4Ω) for the subwoofer
1 x 70W (2Ω) for the subwoofer
2 x 200W (4Ω, Bridge)
|Frequency characteristics||10 Hz – 20 kHz|
|Signal to noise ratio||105 dB|
|Maximum current consumption||10 A|
|Chassis dimensions (W x H x D)||170 mm x 40 mm x 95 mm|
|The weight||0.59 kg|
|IPhone Compatible Generations||• iPhone X / iPhone 8 / iPhone 8 Plus
• iPhone 7 / iPhone 7 Plus / iPhone SE
• iPhone 6s / iPhone 6s Plus / iPhone 6 / iPhone 6 Plus
• iPhone 5s / iPhone 5c / iPhone 5
|IPhone Supported functions||• Charging the connected device
• Play music
|Compatible with Android||Yes|
|Quick Charge for Android||Yes|
|13-band graphic equalizer||Yes|
|Amplifier MOSFET 50 W x 4||Yes|
|Network Mode||Yes, 3 bands (tweeters, midbass, subwoofer)|
|Selecting the listening position||Yes|
|Auto EQ (Equalizer)||Yes|
|Manual TA (Time Alignment)||Yes|
|RCA outputs||3, (front, rear and subwoofer)|
|High Voltage Output (4Volt)||Yes|
|Advanced audio settings||High-quality audio components.
Calibrate the signal (Cancel the preset EQ and time delays).
31-band graphic equalizer when used with the Pioneer Sound Tune application.
Spatial sound effects when used in conjunction with the Pioneer Sound Tune application
